product name:
Potentiometer knob C1 C2 C3 Encoder rotary switch Volume adjustment knob Hat metal face with scale
product description:

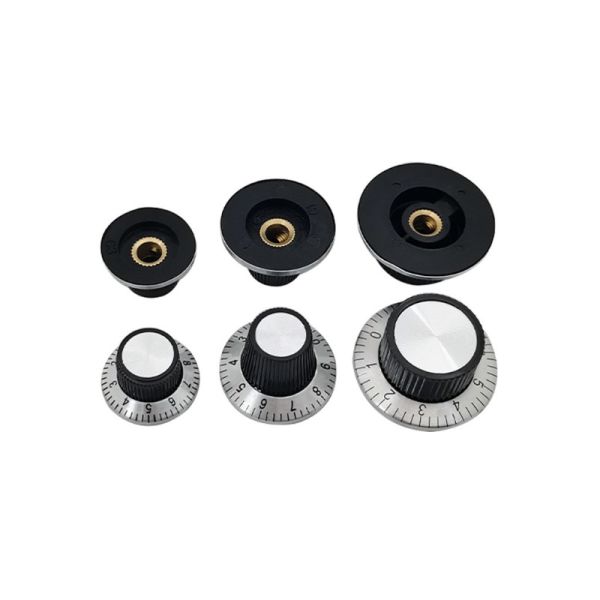

C series metal knob potentiometer knob cap
Spot specification: C1 C2 C3
C1: diameter 23mm, height 15mm (digital scale, triangular arrow, digits 0-10)
C2: Diameter 28mm, height 19mm (digital scale, triangular arrow, digits 0-10)
C3: diameter 36mm, height 15mm (digital scale, triangular arrow, digits 0-10)
Shaft hole: 6mm 6.4mm
Suitable for various potentiometers, such as RV24YN, RV30YN, WX112, WX050, WX110, WX010, WTH118, WX030, WX111, 534, etc
Fixed form: fixed with side screws
Specification: C1 C2 C3
Name: potentiometer knob cap
Central axis: Copper core copper screw
Number of screws: 1
Material: Bakelite and electric wood shell
Top: Aluminum alloy sheet
Packaging: Paper box with foam cotton
Scale: 180Co/ 360Co
Product Features:
Good material quality, multiple styles, durability, long service life, sturdy material, easy installation, and not prone to aging
Product size:
| Name | Model | Diameter | Height | Inner aperture | Material |
| Metal digital scale knob | C1 small | 24mm | 15mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal digital scale knob | C2 medium | 29mm | 19mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal digital scale knob | C3 Large | 37mm | 15mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal triangle arrow knob | C1 small | 24mm | 15mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal triangle arrow knob | C2 medium | 29mm | 19mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal triangle arrow knob | C3 Large | 37mm | 15mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal digital knob 0-10 | C1 small | 24mm | 15mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal digital knob 0-10 | C2 medium | 29mm | 19mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Metal digital knob 0-10 | C3 Large | 37mm | 15mm | Copper core 6mm/6.4mm | Bakelite/Aluminum |
| Suitable for potentiometers such as RV24 RV30 RV28 WTH118 WXO10 WXO30 WXO50 |
| Suitable for potentiometers such as WH148, WH138, WHO24, EC11, EC16, 3590S, 3540S, etc |
| Suitable for RS25 RS26 KCZ KCT MFR01 534-1 22HP FCP22E and other band switches |
Specification parameters:
| name | Scale knob C series |
| model | C1 C2 C3 |
| material quality | Bakelite+aluminum |
| Inner aperture | 6mm |
| C1 size diameter * height | 24 * 15mm |
| C2 size diameter * height | 29 * 19mm |
| C3 size diameter * height | 37 * 15mm |
application area:
Suitable for use with potentiometers such as RV24YN, RV30YN, WX112, WX050, WX110, WX010, WTH118, WX030, WX111, 534, etc
Suitable for potentiometers such as RV24 RV30 RV28 WTH118 WXO10 WXO30 WXO50
Suitable for potentiometers such as WH148, WH138, WHO24, EC11, EC16, 3590S, 3540S, etc
Suitable for RS25 RS26 KCZ KCT MFR01 534-1 22HP FCP22E and other band switches
